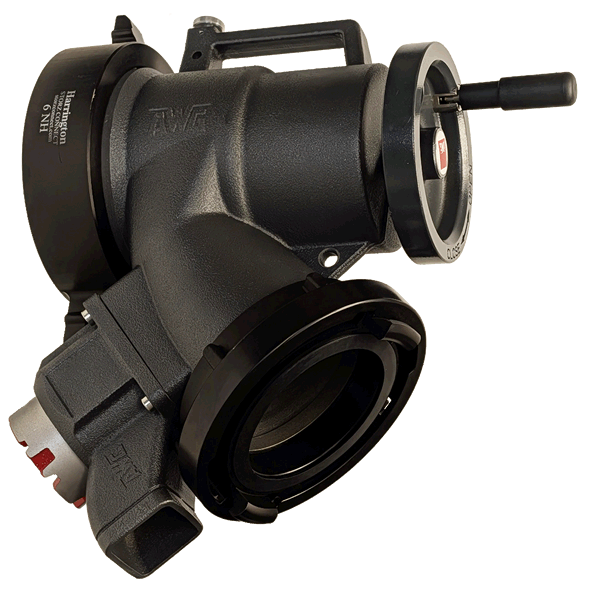

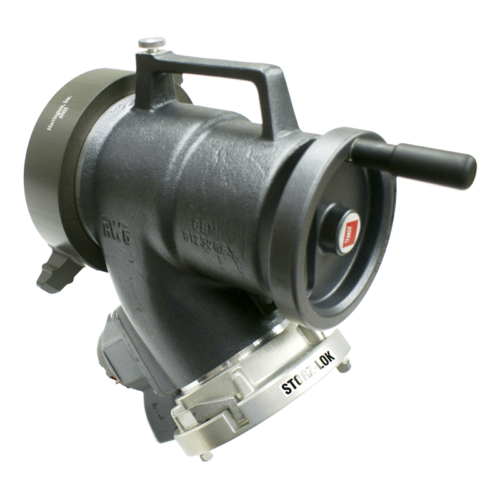

Harrington H500 Piston Intake Valve

Standard Stainless Piston Intake w/ Relief Valve

Extension 10.5″ x W 8″ x H 17″
Wt. 27 lb.
Wt. 48 lb.

Traditional piston intake valve design used for pumper intake control. Provides the following features: a 30 degree integrated elbow, a field adjustable pressure relief valve and an air bleeder valve.

This is a stainless steel piston, sleeve and spindle for  corrosion protection.  Choose from a variety of sizes of Storz or NH connections.

Incorporated 250 PSI field adjustable pressure relief valve adjustable in increments of 25 degrees from 75- 250 PSI.

Friction loss at 1,000 GPM is 2.30 PSI

Warranty: All Harrington, Inc. products are warranted to be free of defects in material and workmanship for a period of one (1) year. H500S and H1000 have a five (5) year corrosion warranty.
