FogNail Attack Nozzle

Specialty Fire Nozzles

Thanks to a higher water pressure, the nozzle releases more water, produces a better fog and a better spreading of the atomized water. After punching in the high pressure nozzle, it must be held in place manually during the whole duration of its use.

Categories: ,

Description

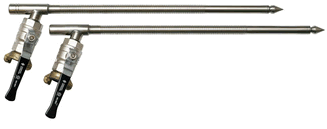

FOGNAIL ATTACK 0,5 M OR 1,7 FT
  • Usable nozzle pressure: 6 to 50 bar or 90 to 700 psi.
  • Flow rate: 72 lpm or 19 gpm at 6 bars.
  • Nozzle pattern: Narrow with a 25 degree fog.
  • Weight: 1,2 kg or 2,2 lbs
  • Length: 0,52 m or 1,7 ft.
  • Nail diameter: 18 mm or 0,71 in.
  • Materials: Connections and regulators in chromium-plated brass, otherwise in stainless steel.
  • Coupling: Country specific.
  • Ball valve thread: 1 inch BSPP female.
  • Thread pattern: BSP, (NH & NPSH available for North American markets).
FOGNAIL ATTACK 1,5 M OR 4,9 FT
  • Usable nozzle pressure: 6 to 50 bar or 90 to 700 psi.
  • Flow rate: 72 lpm or 19 gpm at 6 bars.
  • Nozzle pattern: Narrow with a 25 degree fog.
  • Weight: 2,4 kg or 5,29 lbs.
  • Length: 1,5 m or 4,92 ft.
  • Nail diameter: 18 mm or 0,71 in.
  • Materials: Connections and regulators in chromium-plated brass, otherwise in stainless steel.
  • Coupling: Country specific.
  • Ball valve thread: 1 inch BSPP female.
  • Thread pattern: BSP, (NH & NPSH available for North American markets).

Brand

FogNail
