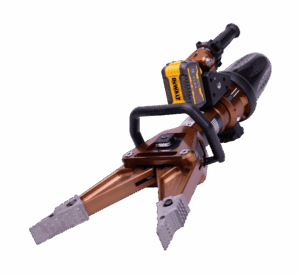

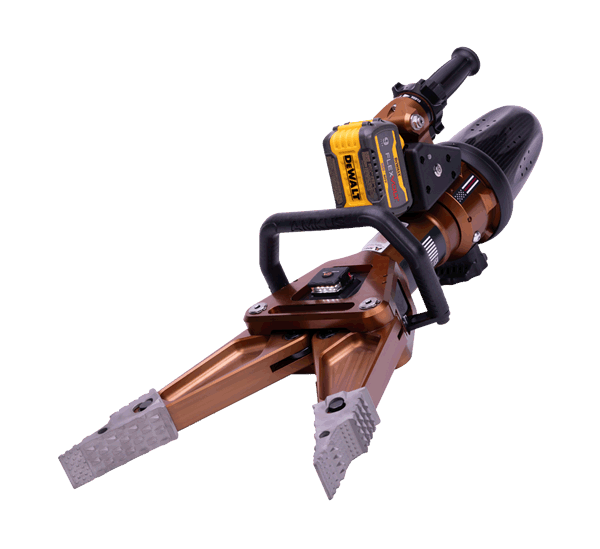

LRS SPREADER
The Light Rescue Spreader is the lightest and fastest spreader in its class, extending up to 37″ with gatorized extended reach tips. With a lightning fast open-close rate, the Light rescue Spreader is crafted to shave seconds off extrication times, helping save lives faster.
- Length: 35.2 in (894 mm)
- Weight: 42.2 lbs (19.1 kg)
- Spreading distance (with ERTs): 37 in (940 mm)
- Highest Spreading Force (HSF): 9,640 lbs (43.7 kN)
- Lowest Spreading Force (LSF): 6,040 lbs (27.4 kN)
- Highest Pulling Force (HPF): 5,890 lbs (26.2 kN)
- Lowest Pulling Force (LPF): 3,890 lbs (17.6 kN)
- Maximum Theoretical Spreading Force: 197,475 lbs (895.7 kN)
|
 |

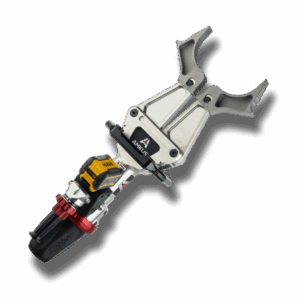

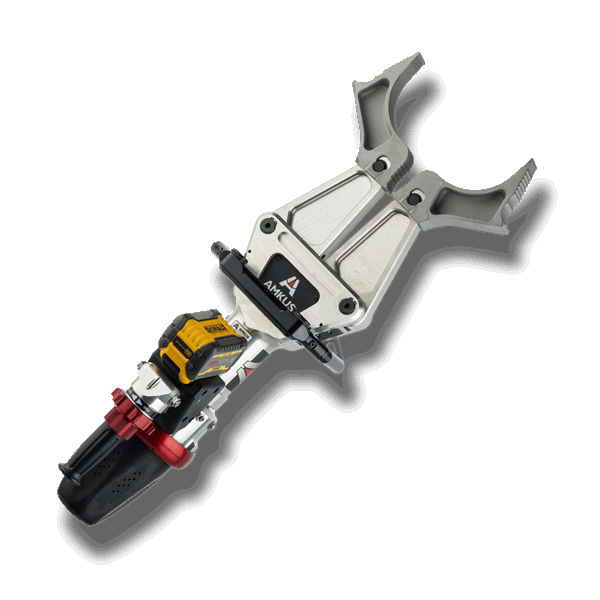

ION IS290 SPREADER
Midsize Spreader With a 12 second open/close rate, the iS290 Spreader uses a four-stage pump, it maximizes speed regardless of load conditions. Designed with a short profile, which allows users to better perform the most complicated extrication techniques.
- Length: 35.2 in (894 mm)
- Weigh:t 47.3 lbs (21.5 kg)
- Spreading distance (with ERTs): 37 in (940 mm)
- Highest Spreading Force (HSF): 9,640 lbs (42.9 kN)
- Lowest Spreading Force (LSF): 6,040 lbs (26.9 kN)
- Highest Pulling Force (HPF): 5,890 lbs (26.2 kN)
- Lowest Pulling Force (LPF): 3,910 lbs (17.4 kN)
- Maximum Theoretical Spreading Force: 197,475 lbs (878.4 kN)
|
 |

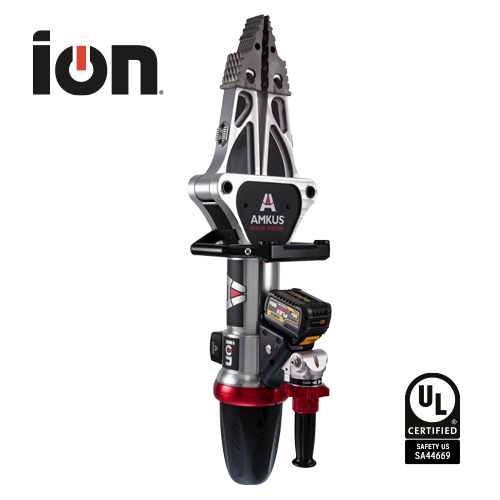

ION IS320 SPREADER
A powerful, multi-use 32-inch spreader. By adding AMKUS’ extended reach tips (ERT), the spread expands to 40”. The unit is also shipped with removable, aggressive gator tips. It’s powered by a DEWALT® FLEXVOLT™ 60 Volt battery that can be shared with other DEWALT tools likes saws and drills.
- Solid aluminum tool body to withstand the severe duty of fire rescue service
- Compact tool design allow access to tight areas other tools can’t reach
- Gator Tips are standard and include an aggressive tooth pattern that won’t slip and beveled edges don’t rip sheet metal
- Add Extended Reach Tips (ERT) to expand the maximum spread distance from 32 to over 39 inches (812 to 993 mm)
- Gator Tips and ERT’s utilize a push button release, so they’re easy to install or remove, even with gloved hands
- High Intensity LED lights located in the handle for increased visibility
- 4-Stage pumps provide amazing speed under both loaded and unloaded conditions
- Center positioning of the battery offers better protection
- Location of the controls offers superior operator control
- Status LEDs offer user feedback on the tool status
- UL Certified, NFPA 1936 compliant
- Powered by a DEWALT FLEXVOLT 60 Volt battery that can be shared with other DEWALT tools
- Length: 38.1 inches (968 mm)
- Width: 11.1 inches (282 mm)
- Height: 11.6 inches (294 mm)
- Weight (excl battery): 54.6 lbs (24.8 kg)
- Max Spreading Distance: 31.9 inches (810 mm), 39.1 inches (993 mm) with ERT Tips
- Highest Spreading Force (HSF): 15,100 lbs (67.2 kN)
- Lowest Spreading Force (LSF): 10,530 lbs (46.9 kN)
- Max. Spreading Force: 39,500 lbs (175.7 kN)
- Highest Pulling Force (HPF): 11,500 lbs (51.1 kN)
- Lowest Pulling Force (LPF): 7,580 lbs (33.7 kN)
|
 |
